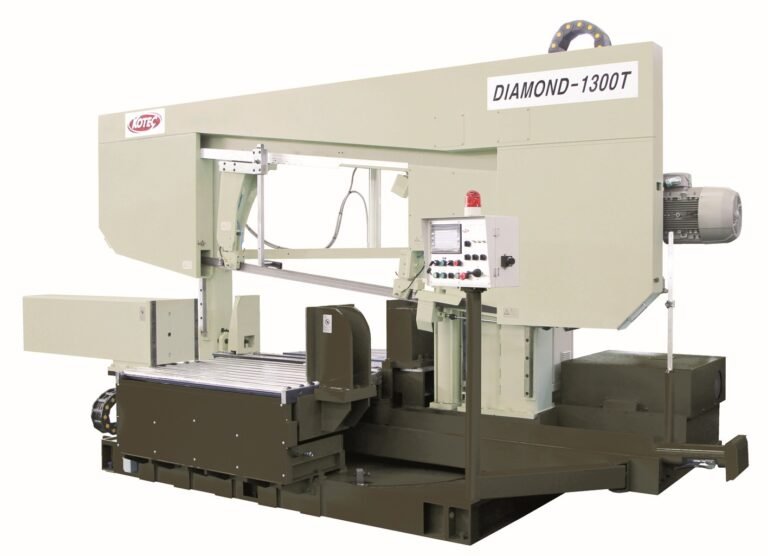

Band Sawing Machine – Diamond-1300T Series
The Diamond-1300T is a robust and efficient bandsawing machine from KOTECSYSTEM T Series, designed to handle large-scale steel cutting tasks with precision and ease. It’s an ideal solution for industries requiring accurate and reliable cutting of heavy steel materials.
Key Features
- Angle Cutting Capability: Performs miter cuts up to 45°, with digital angle control for precise adjustments.
- Stable Saw Blade Feed: Equipped with a Double Linear Motion (LM) guide system, ensuring smooth and stable blade movement during cutting.
- Automatic Control System: Features automatic regulation of cutting speed and end-point detection, enhancing cutting accuracy and efficiency.
Applications
Diamond-1300T is specialized design for Cutting H Beam & Profiles ideal. Its versatility and precision make it a valuable asset for any operation requiring efficient and accurate cutting of steel profiles.
For more information and to view the product video, please visit the official product page:
Technical Specifications
| Specification | Details |
|---|---|
| Model | Diamond-1300T |
| Cutting Capacity (Round Ø) | 90°: Ø600 mm 45°: Ø600 mm |
| Cutting Capacity (Square W×H) | 90°: 1,300×600 mm 45°: 750×600 mm |
| Bundle Cutting Capacity (W×H) | 90°: 1,300×430 mm 45°: 750×430 mm |
| Saw Blade Speed | 20–90 m/min |
| Saw Blade Size (W×T×L) | 67×1.6×9,700 mm |
| Feeding Stroke | 320 mm |
| Machine Dimensions (W×L×H) | 5,400×2,560×2,600 mm |
| Machine Weight | 8,750 kg |
