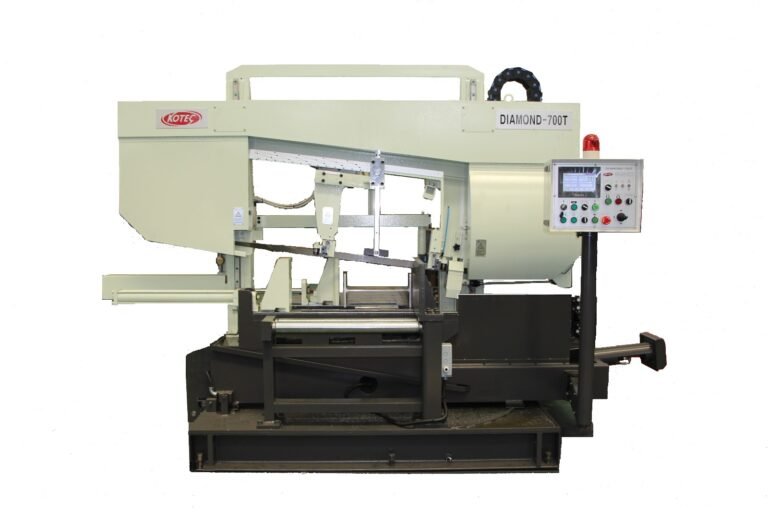

Band Sawing Machine – Diamond-700T Series
The Diamond-700T from KOTECSYSTEM T Series is a high-performance bandsawing machine designed for precision and efficiency in cutting structural steel. With advanced features and robust construction, it ensures accurate and reliable operations for various industrial applications.
Key Features
- Angle Cutting Capability: Performs miter cuts up to 45°, with digital angle control for precise adjustments.
- Stable Saw Blade Feed: Equipped with a Double Linear Motion (LM) guide system, ensuring smooth and stable blade movement during cutting.
- Automatic Control System:Features automatic regulation of cutting speed and end-point detection, enhancing cutting accuracy and efficiency.
Applications
The Diamond-700T is specialized design for Cutting H Beam & Profiles ideal.
For more information and to view the product video, please visit the official product page:
Technical Specifications
| Specification | Details |
|---|---|
| Model | Diamond-700T |
| Cutting Capacity (Round Ø) | 90°: Ø400 mm 45°: Ø380 mm |
| Cutting Capacity (Square W×H) | 90°: 700×400 mm 45°: 380×400 mm |
| Bundle Cutting Capacity (W×H) | 90°: 700×300 mm 45°: 380×300 mm |
| Saw Blade Speed | 20–90 m/min |
| Saw Blade Size (W×T×L) | 41×1.3×5,790 mm |
| Feeding Stroke | N/A |
| Machine Dimensions (W×L×H) | 2,850×1,850×2,400 mm |
| Machine Weight | 4,500 kg |
