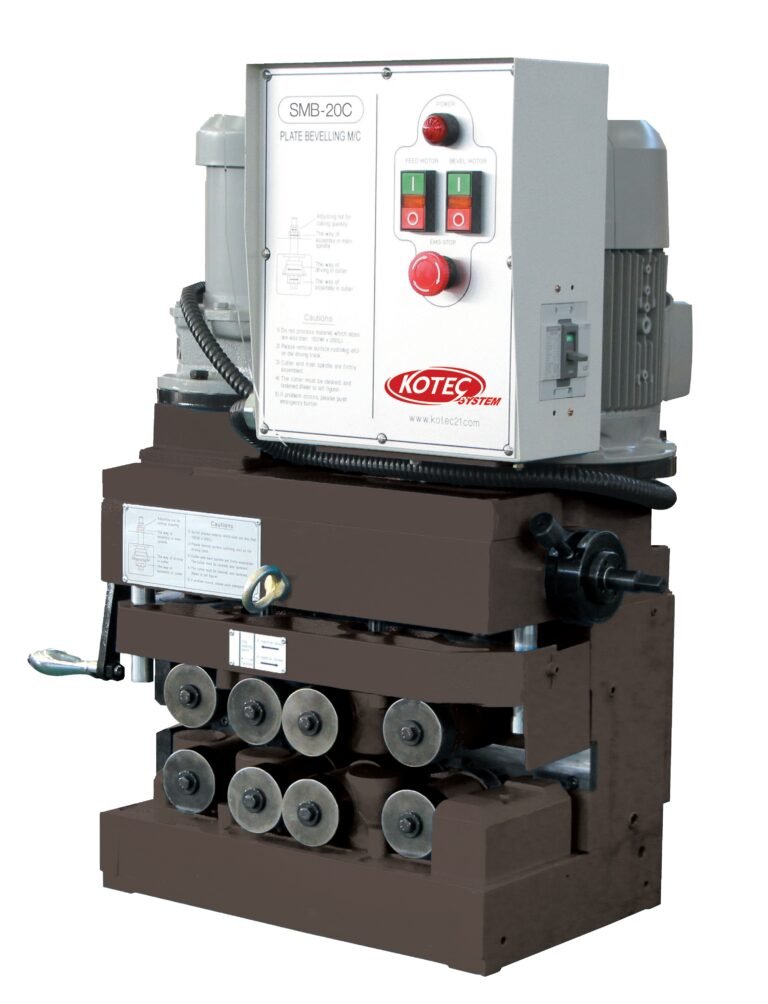

Portable Plate Bevelling Machine SMB-20C
A compact, heavy-duty tool designed to provide high-quality bevelling for plate material, the SMB-20C is engineered for mobility and precision—ideal for on-site and workshop applications.
Key Features
- Portable and Self-Propelled Design: Moves smoothly along large plates for ease of operation and adaptability in the field.
- Durable Tungsten Carbide Cutters: Replaceable cutting inserts ensure extended service life and clean bevel finishes.
- Simple Angle Operation: Fixed bevel angles of 35° or 45° support standard bevelling needs.
Applications
- On-site bevelling operations where portability is vital
- Fabrication shops working with large plate surfaces
- Industries needing quick setup and changeover for bevel preparation
Why Choose SMB-20C?
The SMB-20C blends portability, durability, and precision for fast bevel preparation—no matter where your project takes you. Compact yet powerful, it’s a dependable machine for consistent beveling performance, especially suited to environments that demand flexibility and efficiency.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | SMB-20C |
| Cutting Speed | 280 mm/min (50 Hz) / 330 mm/min (60 Hz) |
| Cutter Rotation | 250 RPM (50 Hz) / 300 RPM (60 Hz) |
| Supported Plate Length | From 200 mm to unlimited |
| Supported Plate Width | From 150 mm to unlimited |
| Plate Thickness Range | 4 mm to 40 mm |
| Max Bevel Depth | Up to 20 mm |
| Bevelling Angles | 35° and 45° |
| Weight | Approximately 260 kg |
| Additional Options | Dual inverter system, upper/lower bevelling cutter available (in SMB-20C) |
