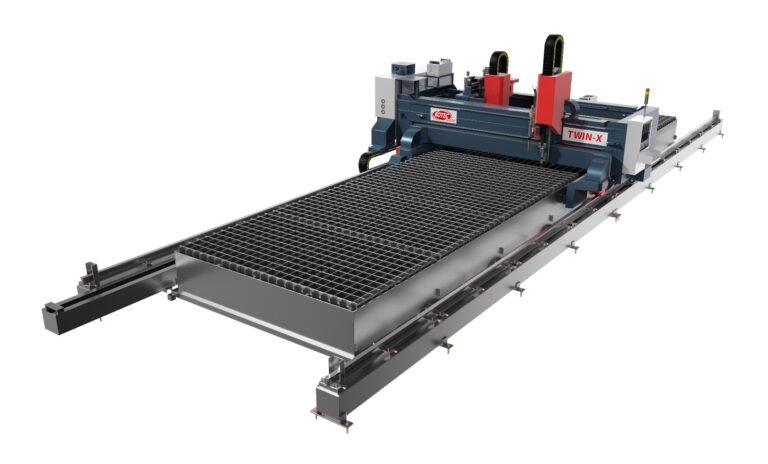

Plate Drilling & Plasma Cutting Machine Twin-X
The Twin-X Drilling & Plasma Cutting Combined Machine from KOTECSYSTEM is a highly efficient solution that combines two key fabrication processes—drilling and plasma cutting—into a single machine. This combination allows for faster and more precise processing of raw steel plates, improving overall productivity and saving valuable workshop space.
Key Features
- Dual Operation: Combines drilling and plasma cutting functions to handle raw steel plates in one setup.
- High Precision: Equipped with advanced CNC controls, ensuring accurate drilling and clean plasma cuts.
- Strong Drilling Capability: Supports carbide drills up to 40 mm in diameter for thick steel plates.
- User-Friendly Control System: Runs on a Windows-based platform with USB and CAD file compatibility for easy programming.
- Space and Cost Efficiency: Eliminates the need for separate machines, reducing factory floor space and operational costs.
Applications
- Structural steel fabrication
- Pre-engineered building steel structural fabrication
- Heavy machinery parts production
- Bridge and infrastructure steelwork
Why Choose the Twin-X?
The Twin-X Combined Machine is an ideal choice for companies looking to boost efficiency by integrating two essential steel processing steps. Its robust design and user-friendly operation make it a valuable asset for modern steel fabrication shops.
Technical Specifications
| Specification | Details |
|---|---|
| Model | Twin-X |
| Structure | Gantry movement |
| Controller | CNC |
| Material Processing Capability (W×T) | 3,000×45 mm (Length can be customized) |
| Max. Drill Bit Capacity | Tungsten carbide drill (Oil HOLE, Tungsten Carbide drill): Ø12~Ø40 mm |
| Drill Spindle Motor | Built-in Spindle Motor (BT-50) |
| Clamp | 4 sets |
| ATC | 6 sets |
| Work Table | Brass Pin & Grating Type Work Table |
| Dimension (W×L×H) | 5,850 x 2,300 × 2,550 (Machine) |
| Weight | 7,100 kg |
